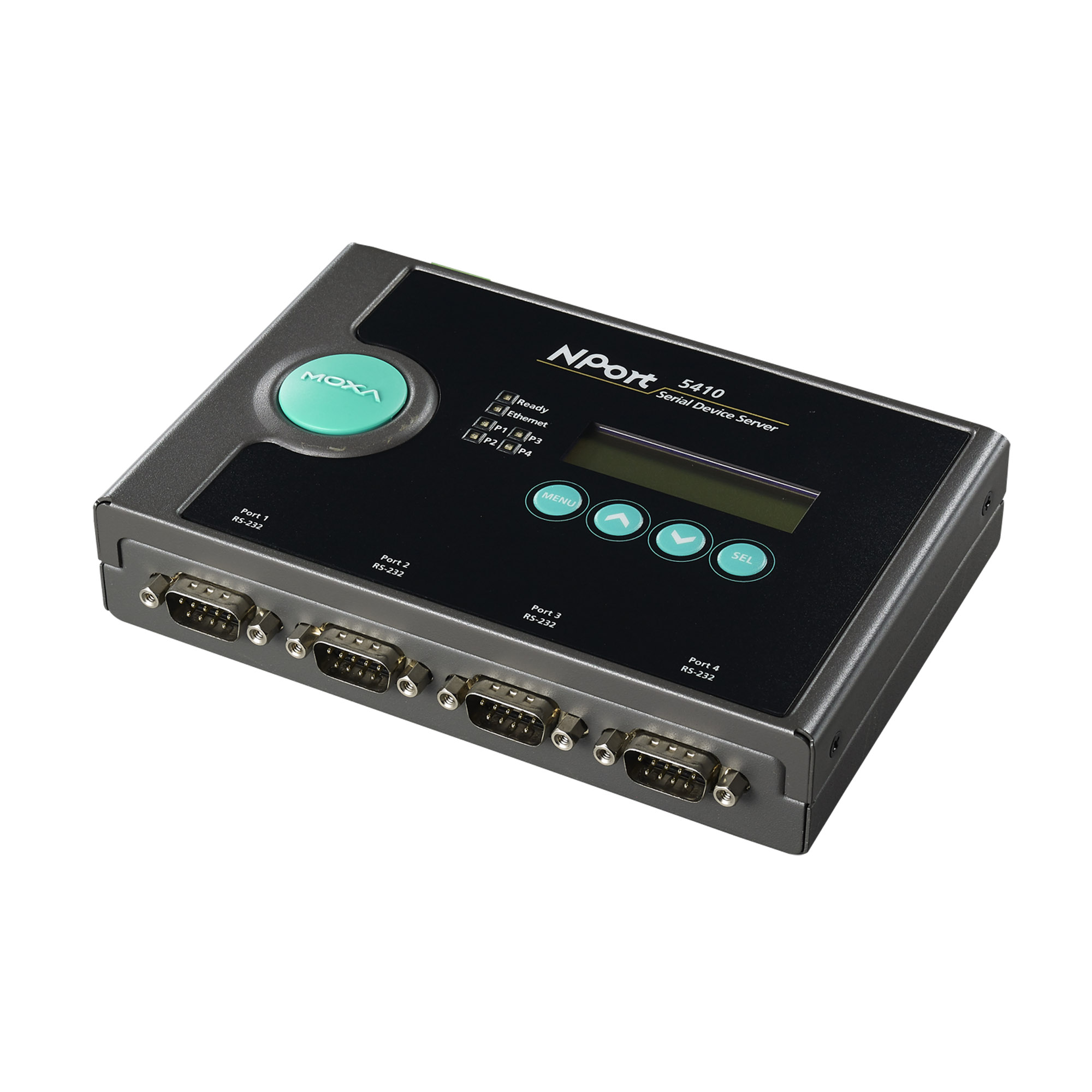

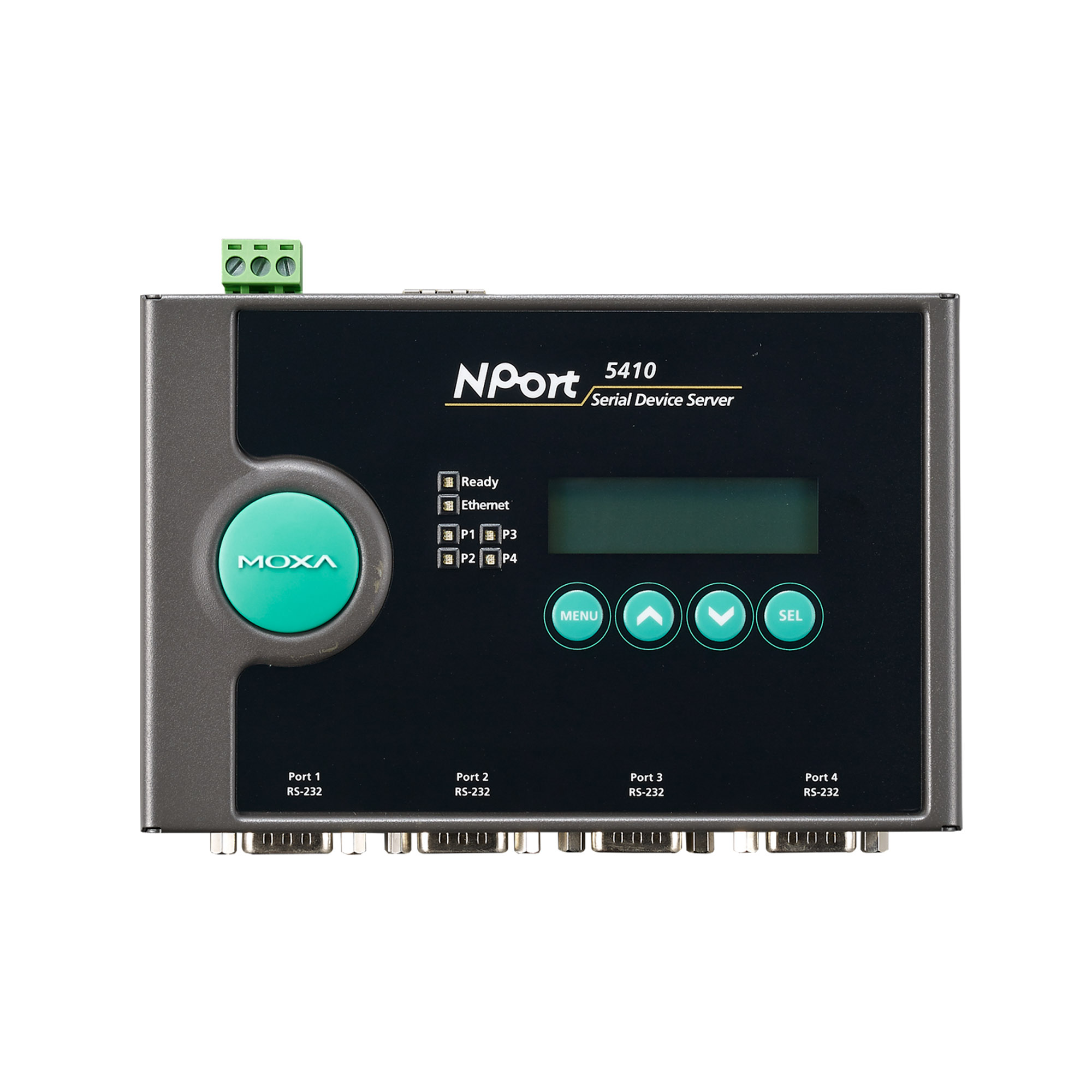

مبدل شبکه NPORT5410SeriesADAPTOR
مبدل سریال به شبکه چهار پورت
دستگاه هایNPort® 54100 ویژگی های مفید بسیاری را برای برنامه های سریال به اترنت فراهم می کنند ، از جمله حالت عملکرد مستقل برای هر پورت سریال ، صفحه LCD برای نصب آسان ، ورودی های برق دوگانه DC و مقاومت های کم و زیاد را دارا می باشند .,و این دستگاه دارای ادابتور میباشد.
محصولات مرتبط
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
Magnetic Isolation Protection
1.5kV (built-in)
Configuration Options
Telnet Console, Windows Utility, Web Console (HTTP/HTTPS)
Management
ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
Filter
IGMP v1/v2
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers
macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API
Android 3.1.x and later
Time Management
SNTP
Serial Interface Connector

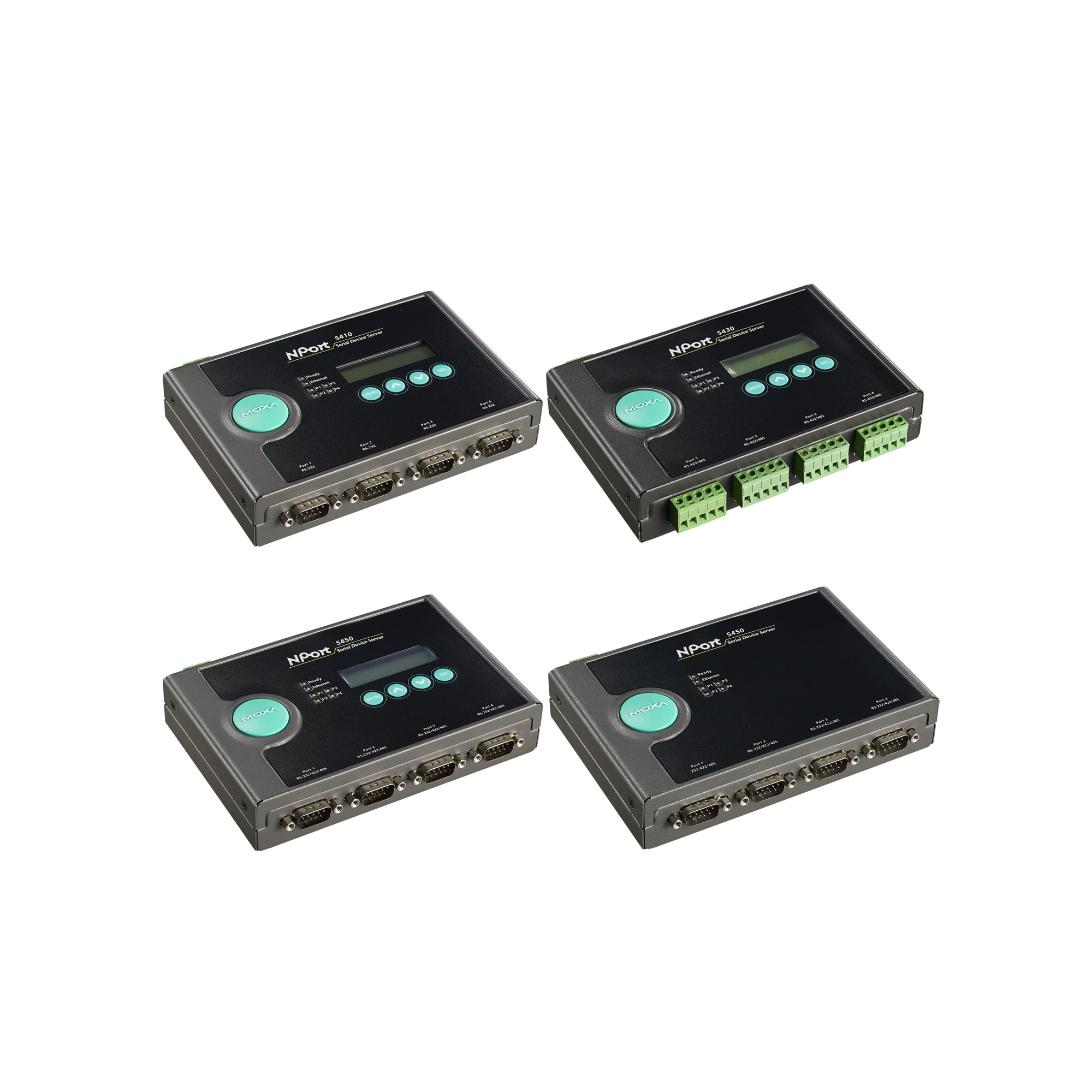

NPort 5410/5450/5450-T/5450I/5450I-T: DB9 male
NPort 5430/5430I: Terminal block
Serial Standards
NPort 5410: RS-232
NPort 5430 Models: RS-422, RS-485
NPort 5450 Models: RS-232, RS-422, RS-485
Operation Modes
Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection, Reverse Telnet, Disabled
Baudrate
Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Isolation
2kV isolation for NPort 5430I/5450I/5450I-T
Pull High/Low Resistor for RS-485
1kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Terminator for RS-485
120ohms
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
Input Current
NPort 5410/5450/5450-T: 350 mA @ 12 VDC
NPort 5430: 320 mA @ 12 VDC
NPort 5430I: 530 mA @ 12 VDC
NPort 5450I/5450I-T: 554 mA @ 12 VDC
Input Voltage
12to 48 VDC
Power Connector
1removable 3-contact terminal block(s)
Power input jack
Automatic Reboot Trigger
Built-in WDT
Alert Tools
Built-in buzzer and RTC (real-time clock)
Physical Characteristics Housing
Metal
Dimensions (with ears)
181x 103 x 33 mm (7.14 x 4.06 x 1.30 in)
Dimensions (without ears)
158x 103 x 33 mm (6.22 x 4.06 x 1.30 in)
Weight
740g (1.63 lb)
Interactive Interface
LCD panel display (standard temp. models only)
Push buttons for configuration (standard temp. models only)
Installation
Desktop, DIN-rail mounting (with optional kit), Wall mounting
Environmental Limits Operating Temperature
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
40to 75°C (-40 to 167°F)-
Ambient Relative Humidity
5to 95% (non-condensing)
EMC
EN 55032/24
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
Safety
UL 60950-1
Maritime
DNV (standard temp. models only)
Medical
NPort 5410/5450/5450I:
EN 55011: 2007+A2: 2007 Class A (Group 1) compliant
EN 60601-1-2: 2007 compliant
MTBFTime
NPort 5410: 310,331 hrs
NPort 5430/5430I: 265,650 hrs
NPort 5450/5450I/5450-T/5450I-T: 206,903 hrs
Standards
Telcordia (Bellcore) Standard TR/SR
Warranty Period
5 years
