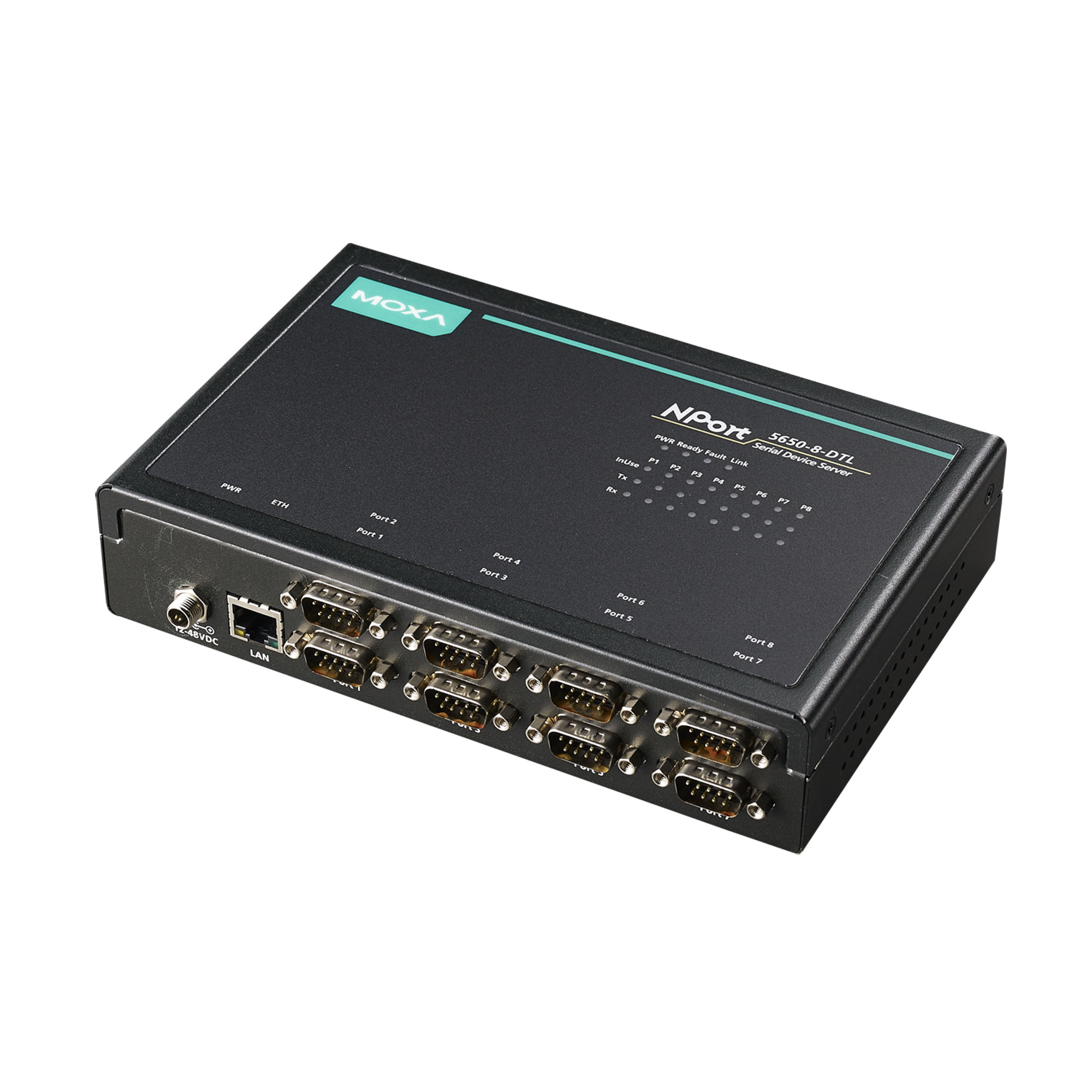

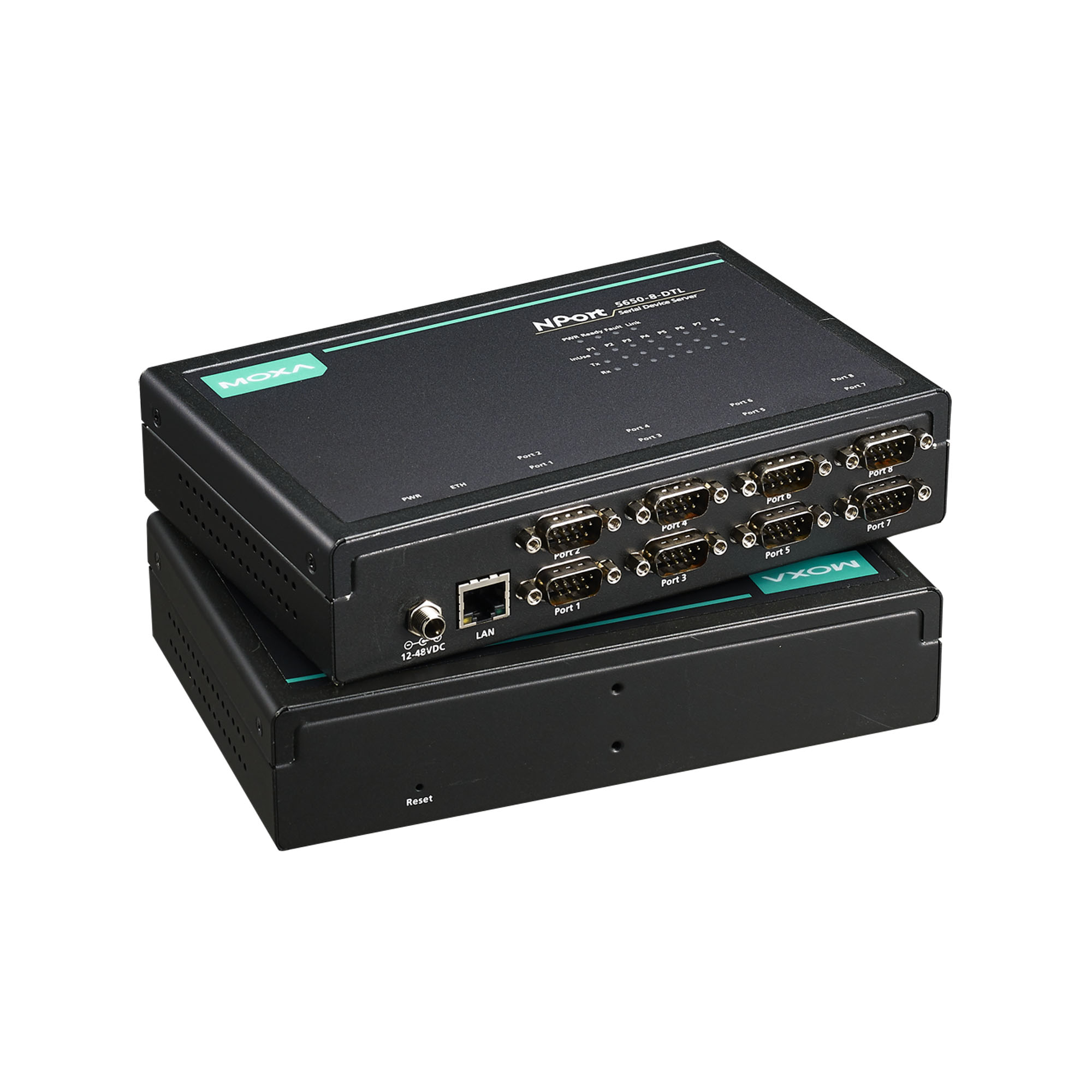

مبدل شبکه NPORT5650-8 -S-SC
مبدل سریال به شبکه شش پورت سری
دستگاه های NPort® 5650-8-S-SC می توانند 8 دستگاه سریال را به راحتی و با شفافیت به یک شبکه اترنت متصل کنند ، به شما این امکان را می دهند که دستگاه های سریال موجود خود را با پیکربندی های اولیه شبکه کنید. هم می توانید مدیریت دستگاه های سریال خود را متمرکز کنید و هم میزبان های مدیریتی را در شبکه توزیع نمایید.
محصولات مرتبط
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
Magnetic Isolation Protection
1.5kV (built-in)
Configuration Options
Serial Console, Telnet Console, Web Console (HTTP/HTTPS), Windows Utility
Management
ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, Telnet, TCP/IP, UDP
Filter
IGMP v1/v2
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers
SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API
Android 3.1.x and later
MIB
RFC1213, RFC1317
Time Management
SNTP
Connector
DB9 male
Serial Standards
NPort 5610-8-DTL Series: RS-232
NPort 5650-8-DTL Series: RS-232, RS-422, RS-485
Baudrate
Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
RTS/CTS, DTR/DSR, XON/XOFF
Isolation
NPort 5650I-8-DTL Series: 2 kV
Pull High/Low Resistor for RS-485
1kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Terminator for RS-485
NPort 5650 Series: 120 ohms
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
Power Parameters Input Current
NPort 5610-8-DTL Series: 340 mA @ 12 VDC
NPort 5650-8-DTL Series: 470 mA @ 12 VDC
NPort 5650I-8-DTL Series: 740 mA @ 12 VDC
Input Voltage
12to 48 VDC
Reverse Polarity Protection
Supported
Source of Input Power
Power input jack
Physical CharacteristicsHousing
Metal
Dimensions (with ears)
229x 135.43 x 46 mm (9.02 x 5.33 x 1.81 in)
Dimensions (without ears)
197x 135.43 x 44 mm (7.76 x 5.33 x 1.73 in)
Weight
NPort 5610-8-DTL Series: 1760 g (3.88 lb)
NPort 5650-8-DTL Series: 1770 g (3.90 lb)
NPort 5650I-8-DTL Series: 1850 g (4.08 lb)
Installation
Desktop, DIN-rail mounting (with optional kit), Wall mounting (with optional kit)
Operating Temperature
Standard Models: 0 to 60°C (-32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
40to 75°C (-40 to 167°F)-
Ambient Relative Humidity
5to 95% (non-condensing)
EMC
EN 55032/24
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs
Safety
UL 60950-1
DeclarationGreen Product
RoHS, CRoHS, WEEE
MTBFTime
NPort 5610-8-DTL Series: 953,388 hrs
NPort 5650-8-DTL Series: 740,457 hrs
NPort 5650I-8-DTL Series: 258,150 hrs
Standards
Telcordia (Bellcore) Standard TR/SR
Warranty Period
5 years
